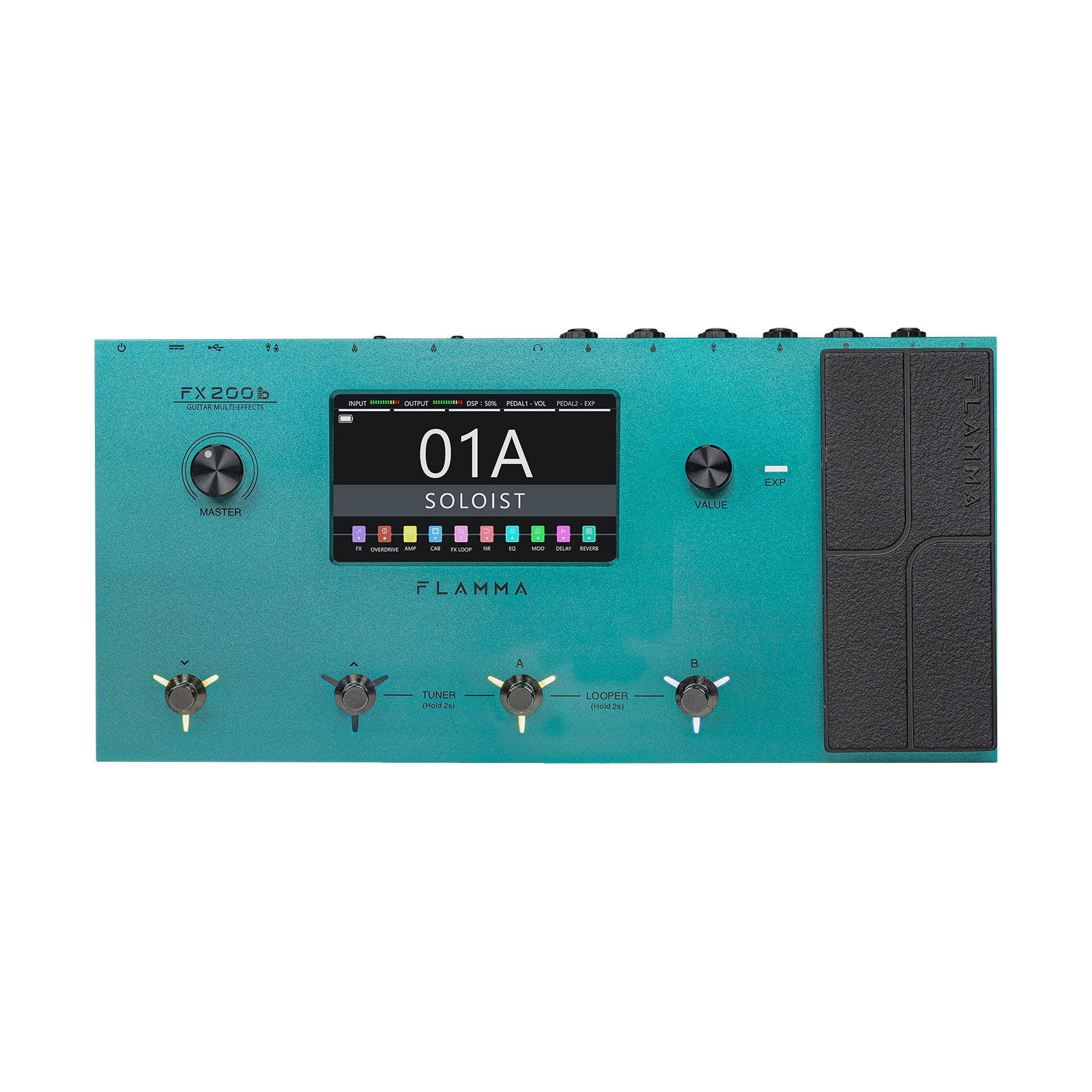

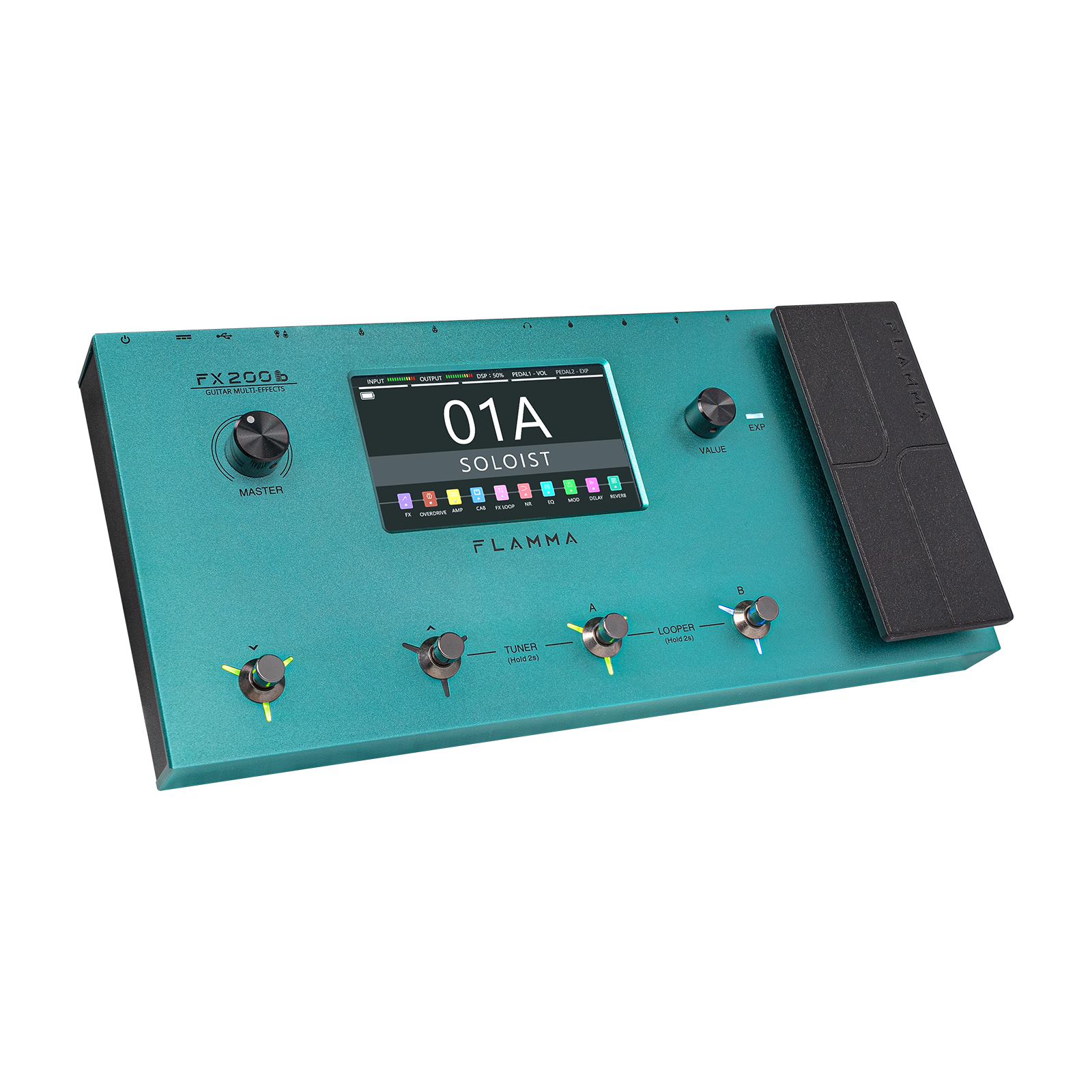

The FX200 is the newest flagship multi-effects processor from FLAMMA Innovation. The FX200 aims to be a step up from the FX100 in every way including a brand-new 5” LCD touch screen and newly polished user interface where digital pedal icons pop and recreate the feel of FLAMMA's FS-Series lineup. Users will instantly notice the addition of two more footswitches for easier preset bank switching and effects control, as well as an all-new pedal design with premium grip and upgraded hinge functionality.

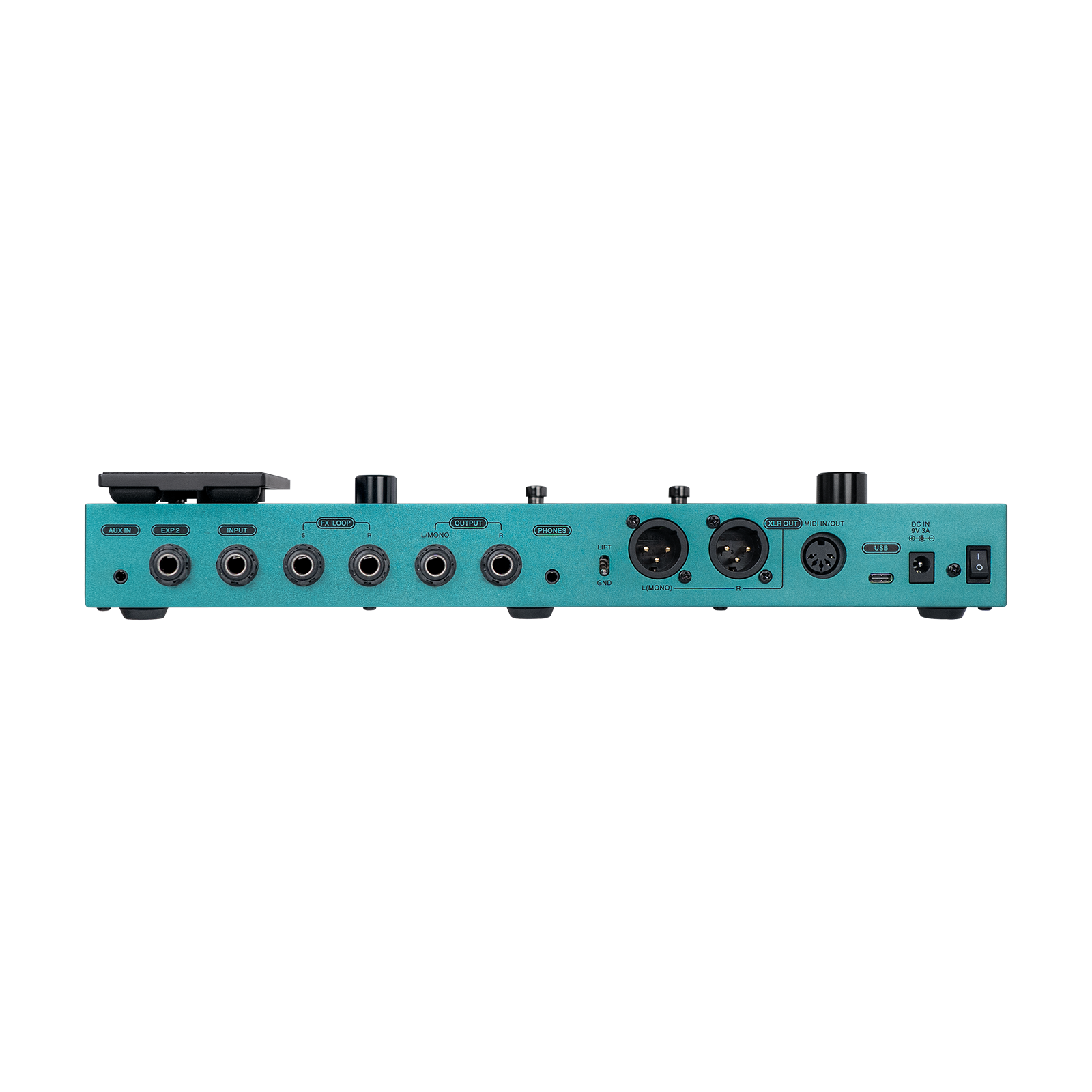

The I/O of FX200 and FX200b has been drastically expanded to support auxiliary in, expression pedal, stereo FX Loop, stereo out, headphones out, XLR out, 5 pin MIDI in/out, USB-C for PC connection, and a power switch is also included for convenience. The expanded I/O is aimed for covering guitarists in all situations, with or without an amp, on stage, in the studio, or on the road.
AUX IN: 1*1/8” unbalanced stereo input jack，impedance value 47kΩ. 1/8” stereo audio input jack, for connecting to external audio device
MIDI PORT: 1*5-PIN MIDI female port. Programmable MIDI port for MIDI IN or MIDI OUT.
USB PORT: Supports USB audio recording with specialized editor software for preset management and firmware updates.
EXP 2: 1*1/4” TRS jack, impedance value 10kΩ. 1/4” stereo audio input jack, connect to external expression pedal
XLR OUT: 2*balanced XLR output jack，impedance value 600Ω. XLR stereo audio output for balanced signal.
FX LOOP: Send Port, Return Port, 1/4” unbalanced mono output jack, for connecting to external pedal or four-cable-method.

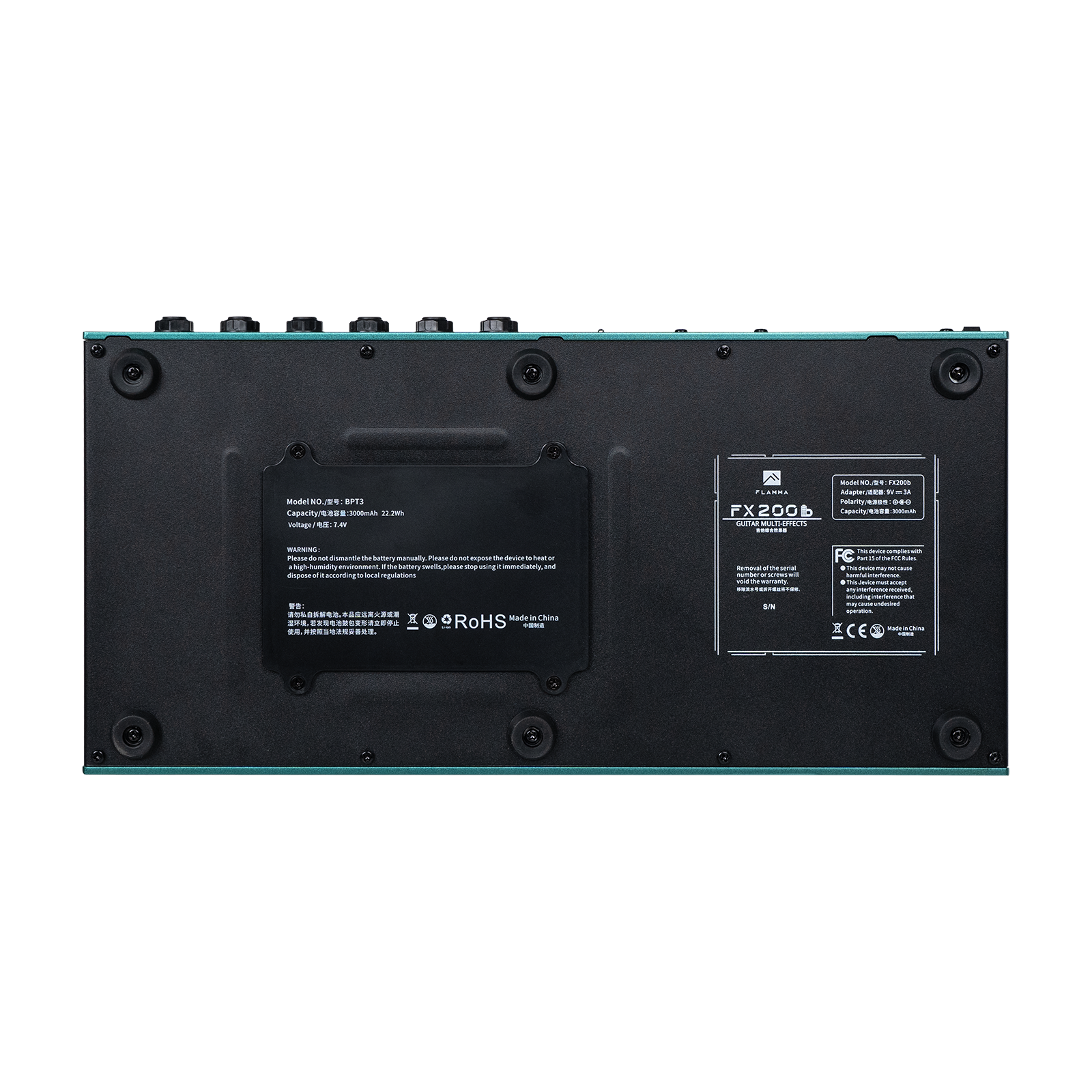

The FX200b, an ultra-compact professional multi-effects built-in high quality lithium 3000mA battery brings much convenience for a guitarist to rock on their street live, live show, and live streaming. The safety battery with Long Lifet ime, lasts up to 5.5 hours.
Impulse Response
30 High Quality Cab Sims
with 50 IR Slots
| Type | Description |
|---|---|
| File Format | .WAV |
| Sample Rate | 44.1 kHz |
| Sample Accuracy | 24 bit |
| Sample Point | 1024 points |
TIP: FX200 editor software supports sample rate conversion.
5" LCD Touch Screen: Intuitive 5" LCD touch screen allows you to quickly slide the effects module and edit the parameters. Editable effects chain allows users to change the order of modules.
